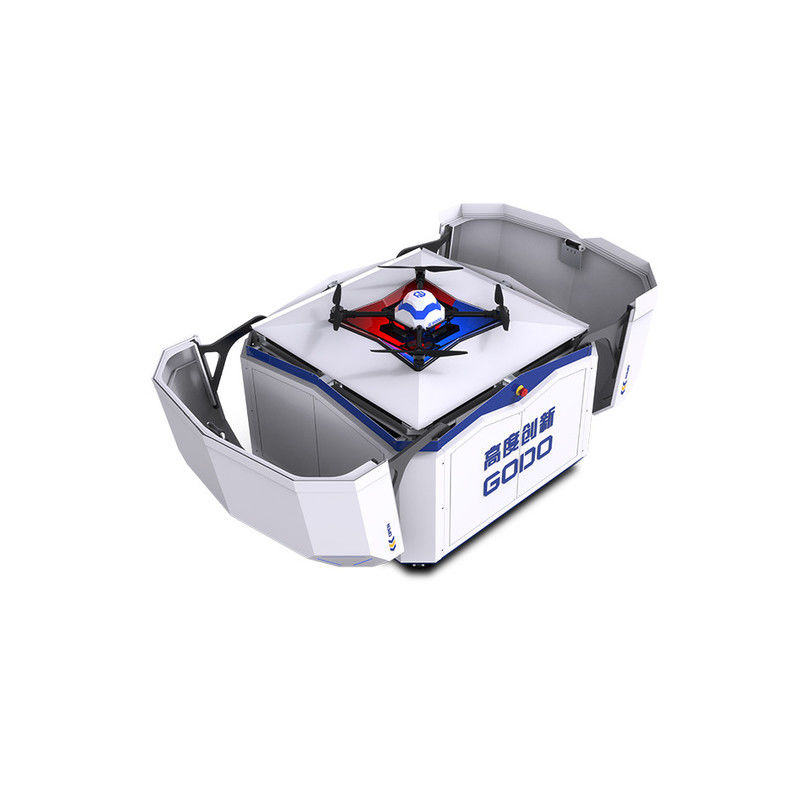

GODO Autonomous Tethered System AT150
Product Introduction
This product adopts modular design for payloads, can carry corresponding professional pods according to different requirements, support carrying infrared cameras, high magnification zoom cameras, and high brightness lighting modules at the same time, meet the application requirements of various hovering missions.
GODO AT150 tethered automatic dock is designed for the requirements of complex application scenarios with high reliability, high response speed, and high adaptability, it has functions such as drone storage and protection, intelligent standby, UPS power failure protection, multi-sensor redundancy, fault self-test, emergency parachute opening, and takeoff condition detection.The product is flexible in deployment, quick responsive, 24 hour unattended, non-stop hovering, and requires no personnel operation.
Product Features
Easy-to-use
Fully autonomous
24H flight endurance
Unattended operation
Cloud management
Real-time synchronization
Specifications
|
Dock System
|
| Size |
1580*1580*1540mm |
| Weight |
1000kg |
| Power |
≥4kw |
| Cable length |
≥200m |
| Diameter of tethered cable |
≤3.6mm |
| Tensile strength |
≥30kg |
| Aviation connector |
Industrial-grade aviation connector, complying with CCC standards |
| Rated input voltage |
220VAC±10% |
| Output voltage |
300-500VDC(AVR) |
| Maximum output current |
≤30A(220VAC Rated load) |
|
Drone
|
| Wheelbase |
880mm |
| Weight |
10kg |
| Maximum takeoff weight |
≥11kg |
| Maximum takeoff altitude |
≥2000m |
| Maximum climbing speed |
≥2m/s |
| Maximum landing speed |
≥1m/s |
| Hovering altitude |
≤200m |
| Maximum flight time |
24H |
Product Description
Designed for Various Payloads The drone has been designed to carry on various equipment, from dual-lens camera / high-definition zoom camera / high brightness lighting module to speaker
Applications
Widely used in scenic spots/parks, construction, communities or public squares, mining areas, transportation, border defense/sea areas, etc.
FAQ
Q1:What is the minimum quantity I need to order?
A:At least 1 unit needs to be ordered.
Q2:How long is the delivery time?
A:Mass production takes 30 working days.
Q3:What is the shipping method?
A: We suggest to ship the equipment by sea.
Q4:Can I print my logo on the product?
A:Yes. Please inform us formally before production.
Q5:Can I get a discount?
A:Please contact our sales manager.
