GODO UAV Accessories 3 Lens Payload Designed For M190 Drone

Place of Origin	China
Brand Name	GODO

Product Details

Type:

UAV Accessories

Color:

Black

Dimension:

131mm×155mm×208mm

Weight:

≤1.2kg

Typical People Recognition:

Person (size 0.5m X 1.8m): 2.5 Km

Typical Car Recognition:

Car (size 4m × 6m): 4km

Highlight:

3 Lens Payload

Drone Camera

Laser Payload

Payment & Shipping Terms

Minimum Order Quantity

Delivery Time

15 working days

Payment Terms

L/C, D/A, D/P, T/T

Product Description

3-Lens Payload for M190 Drone

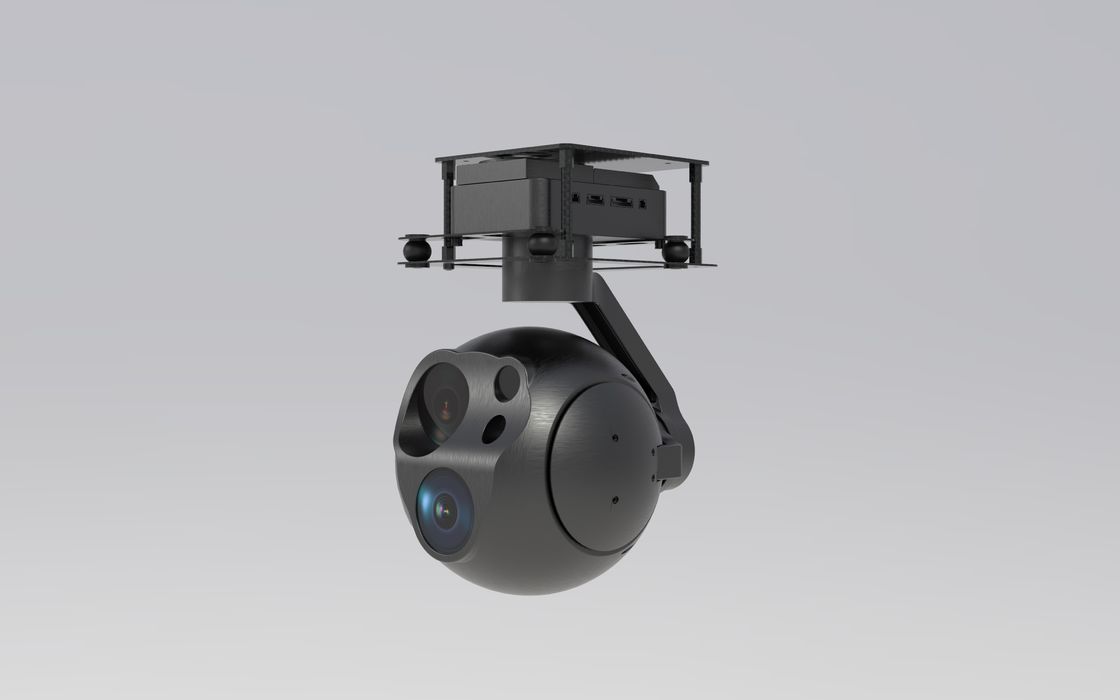

GODO UAV Accessories 3 Lens Payload Designed For M190 Drone 0

With the 3-lens payload, during the day, the drone can perform daily patrols on cities and the coastline through 30x optical autozoom, 200W effective pixels , fast focusing, and high definition real-time picture postback. The night operation drone supports 8 pseudo-color switching and 4x digital doubling through 640 × 512 high-resolution infrared thermal imaging. Under the condition of visibility not less than 8km, relative humidity not more than 70%, the infrared action distance can clearly see the contours and motion trajectories of vehicles and ships within 2km, and can also irradiate vehicles and ships through the built-in laser device, with an effective distance of 1km, greatly improving the ability to deal with emergencies at night.

Support target tracking and image stabilization of visible light and thermal imaging, select tracking targets through remote scheduling platform, and AI automatically recognizes targets and tracks them continuously. And the tracking information can be synchronously guided to the drone to track targets: vehicles, ships, and human bodies can be selected arbitrarily, and dynamic and precise tracking of targets can be achieved without obstacles such as mountains and forests.

Laser irradiation: Compared with the traditional drone three-light pod , GODO independently developed the laser irradiation function. The pod has a built-in laser irradiation device, which can control the laser irradiation diameter. The laser irradiation power reaches 400 mW , which can accurately irradiate objects outside 1km to assist ground personnel in tracking.

Technical Specification

Visible light camera	Detector resolution	1920×1080
	Video output	High definition 1920 × 1080
	Optical magnification	30 times
	Lens focal length	4.3mm～129mm
	Zoom mode	Auto focus
	Angle of field	63.7°～2.3°
	Image and video storage	Photo format is .jpg, compressed video format.avi
	Object tracking	Support automatic tracking of the target by the pod after selecting the target from the video screen
	Image stabilization	Support PTZ three-axis mechanical stabilization
	Video recording	Support real-time visible light video background storage
	Typical target recognition range (under conditions of visibility not less than 8km and relative humidity not more than 70%)	Person (size 0.5m x 1.8m): 2.5 km
		Car (size 4m × 6m): 4km
Infrared thermal imager	Detector resolution	640×512
	Detector type	Uncooled focal plane infrared detector, band 8μm~ 14μm
	Lens focal length	35mm
	Angle of field	12°×10°(±5%)
	Pseudo-color	8 kinds
	Temperature measurement range	-20℃～150℃
	Temperature measurement accuracy	± 2K or 2%
	Digital doubling	×2,×4
	Object tracking	Support automatic tracking of the target by the pod after selecting the target from the video screen
	Image stabilization	Support PTZ three-axis mechanical stabilization
	Video recording	Support real-time infrared video background storage
	Image and video storage	Photo format is .jpg, compressed video format.avi
	Typical target recognition range (under conditions of visibility not less than 8km and relative humidity not more than 70%)	Person (size 0.5m x 1.8m): 2.5 km
		Car (size 4m × 6m): 4km
Servo platform	Azimuth angle	360°×n
	Pitch angle	-120°～+90°
	Roll angle	-60°～+60°
Laser (choose one)	Laser ranging	2km
Laser (choose one)	Laser irradiation	Power: 400 mW
Payload parameters	Weight	≤1.2kg
Payload parameters	Dimension	≤131mm×155mm×208mm
